KV. LILJEKONVALJEN

Stockholm, Sweden 15 000 m² MULTIFUNCTIONAL RESIDENTIAL COMPLEX
Main Contractor
Skanska Sverige AB
Location
Stockholm, Sweden
Total Area
15 000 m²
Service
Detailed Structural Design of Precast Concrete and Steel Structure
Period
September 2017 — April 2018
Engineering Overview

Kv. Liljekonvaljen is a 15,000 m² residential complex in Stockholm, with Skanska Sverige AB as main contractor. Grey Gecko carried out the BIM-based structural design of the precast concrete and steel frame across several building blocks, with staircase and lift-shaft cores in reinforced concrete.

Element drawings covered geometry, reinforcement, embeds, lifting points and connections, and were issued to the precast factory and the erection team. The blocks are founded on drilled piles and have precast hollow-core floors.

Technical Specs
Structure TypePrecast Concrete + Steel
CodeEurocodes · BBR
SoftwareTekla Structures
FoundationDrilled piles
FloorsPrecast hollow-core slabs
Project Photography

PROJECT GALLERY

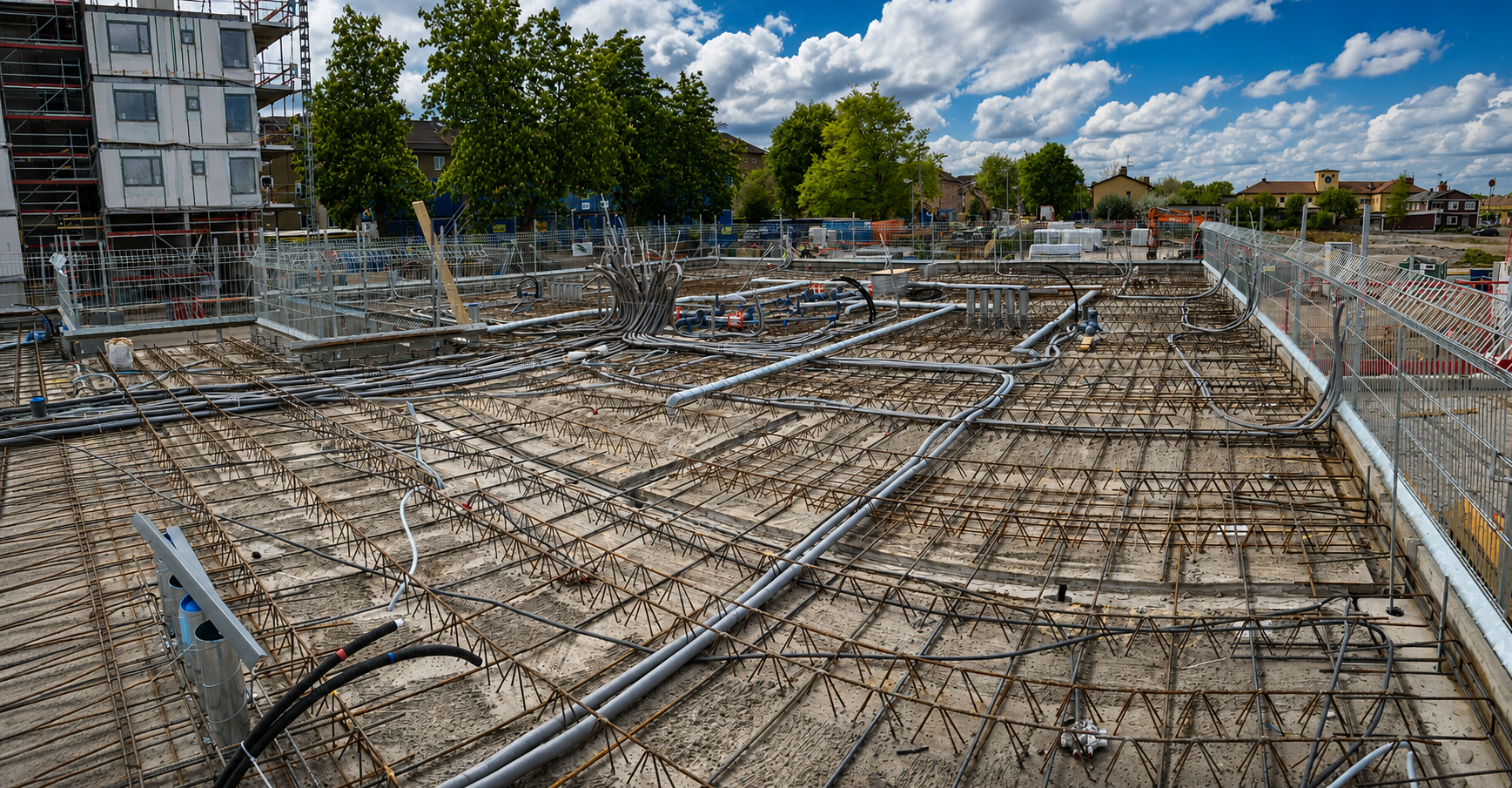

KV. LILJEKONVALJEN — Photo 1

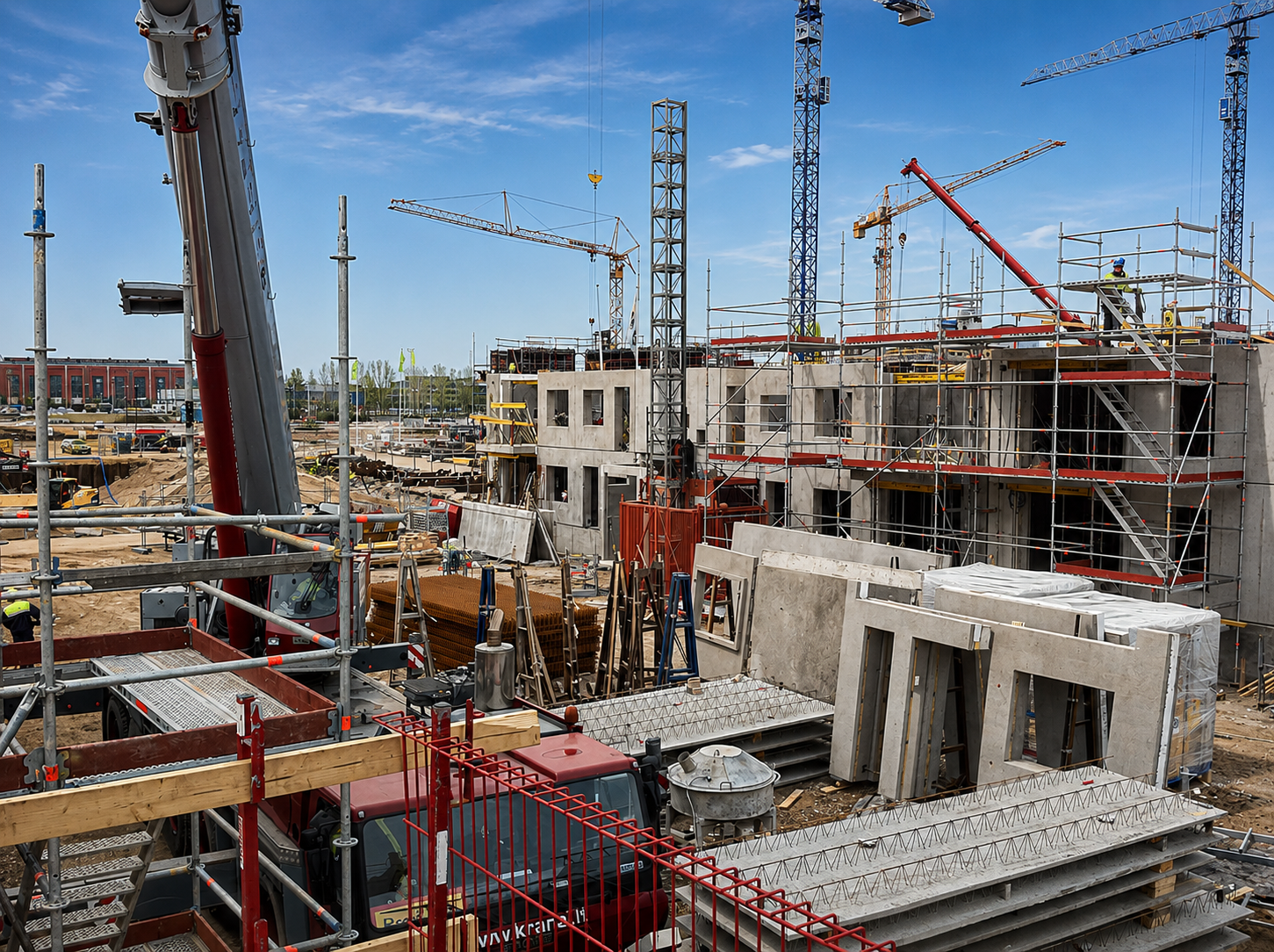

KV. LILJEKONVALJEN — Photo 2

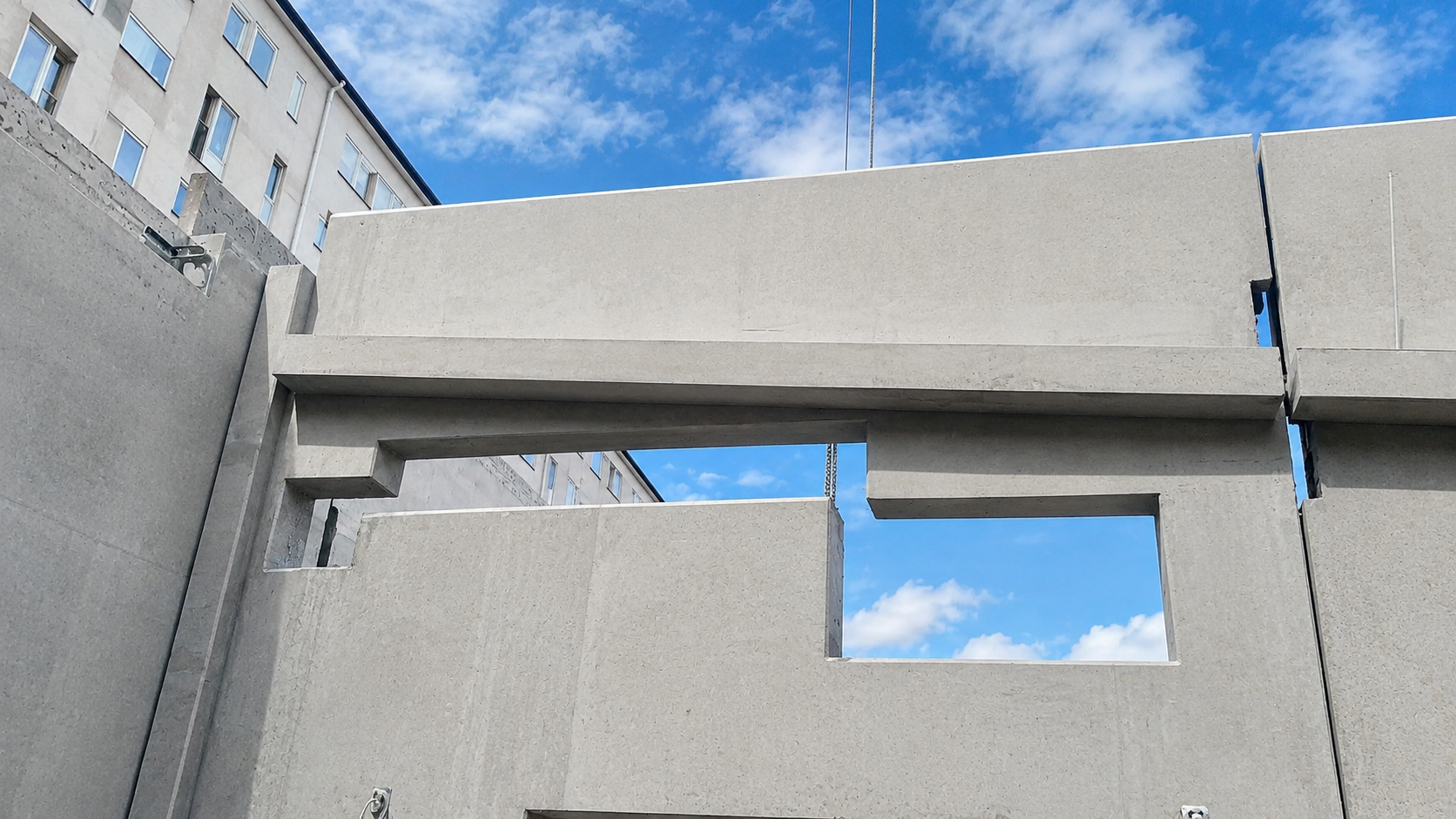

KV. LILJEKONVALJEN — Photo 3

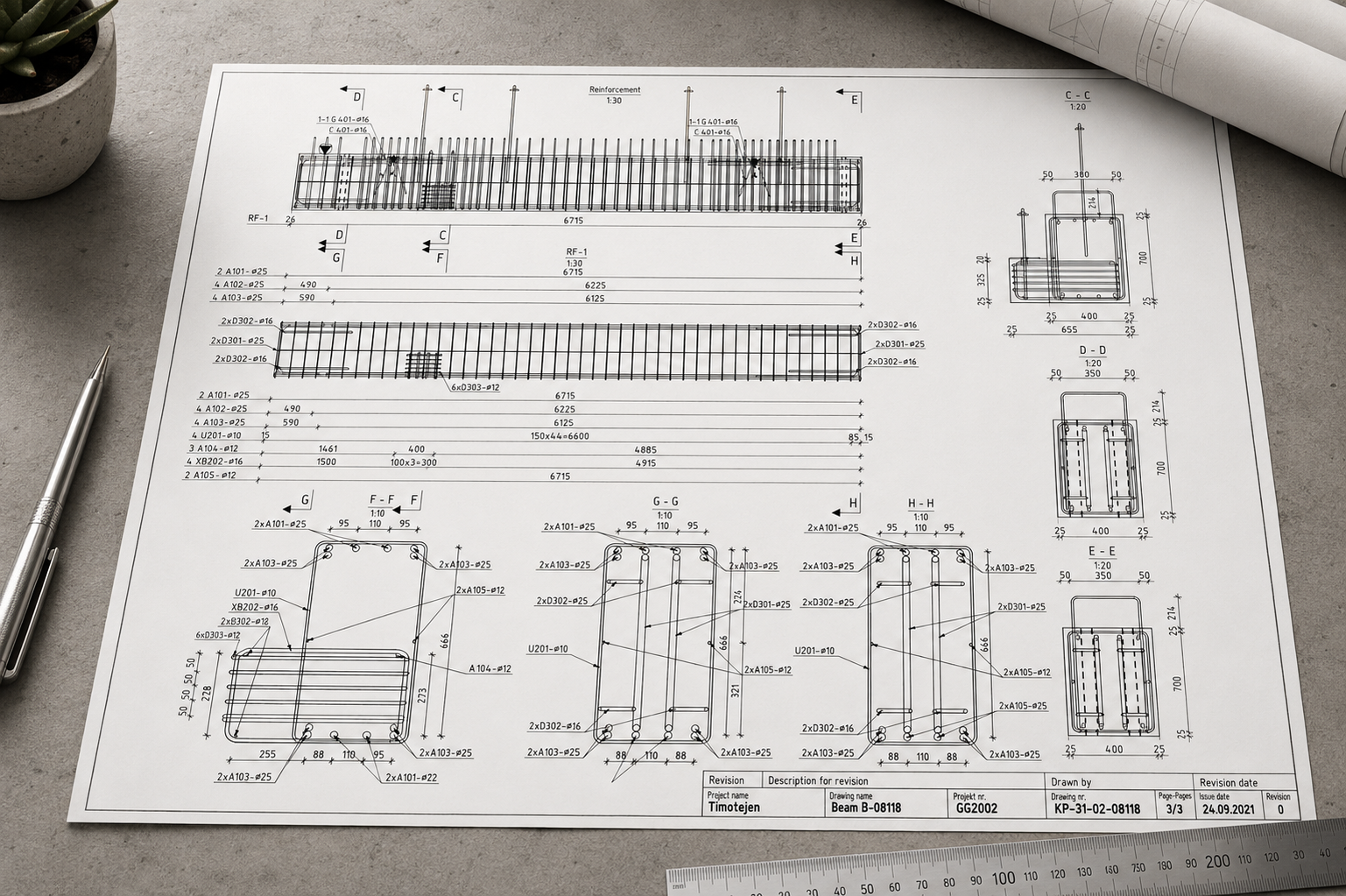

KV. LILJEKONVALJEN — Photo 4
Digital Model
BIM / Tekla Model

STRUCTURAL MODEL

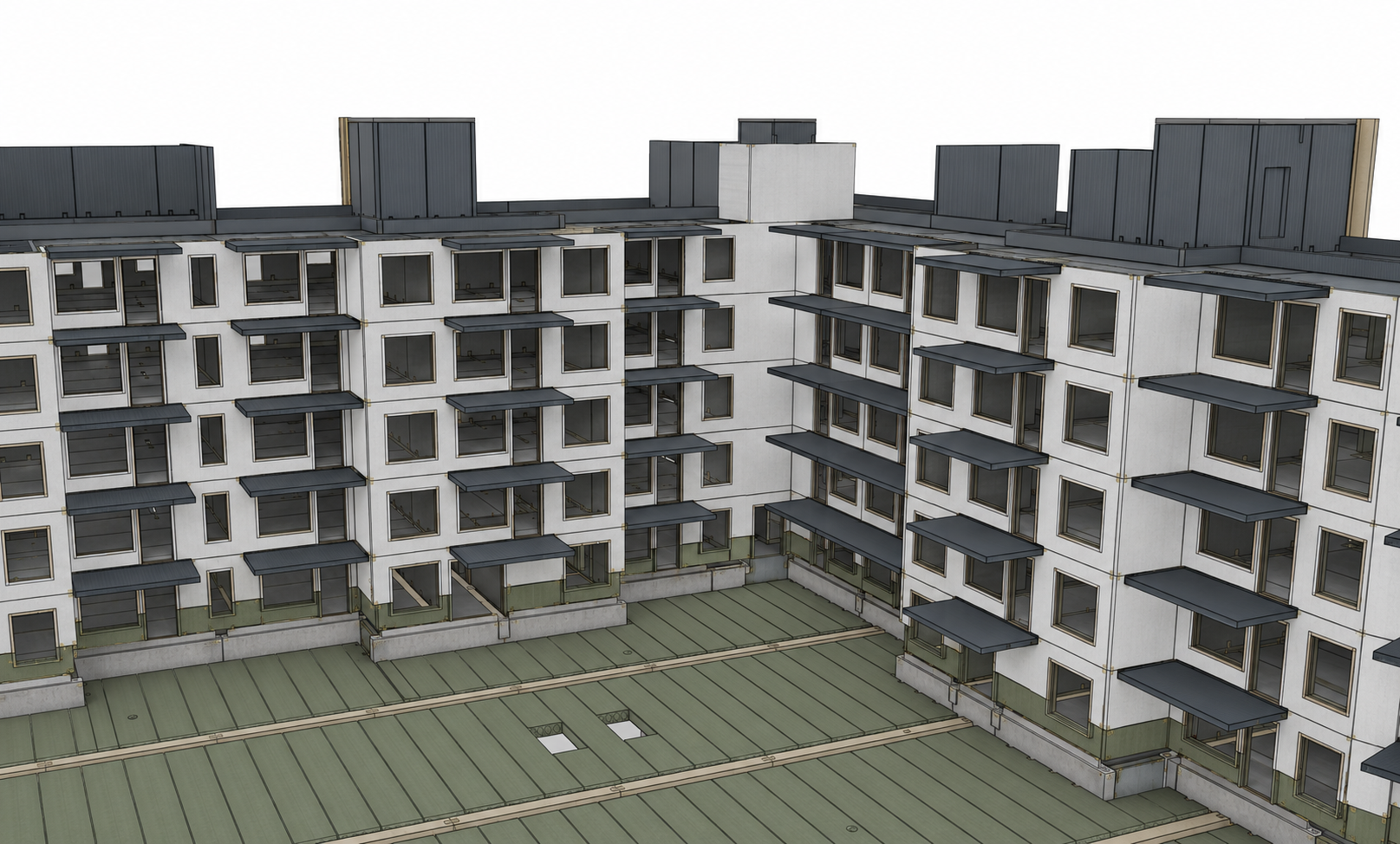

KV. LILJEKONVALJEN — Tekla Model 1
3D Structural Model — Tekla Structures

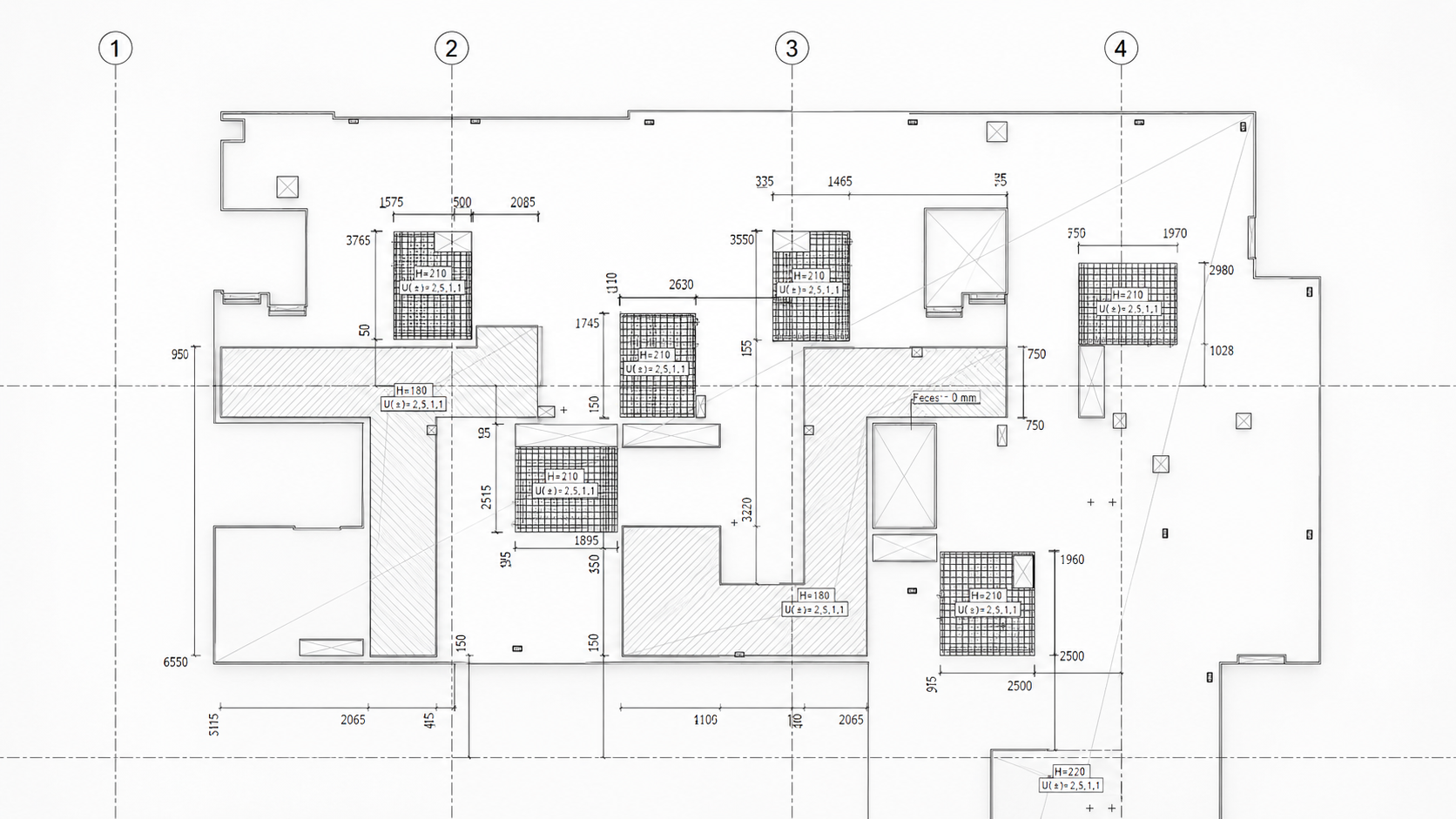

KV. LILJEKONVALJEN — Tekla Model 2
Element Layout & Connection Details
